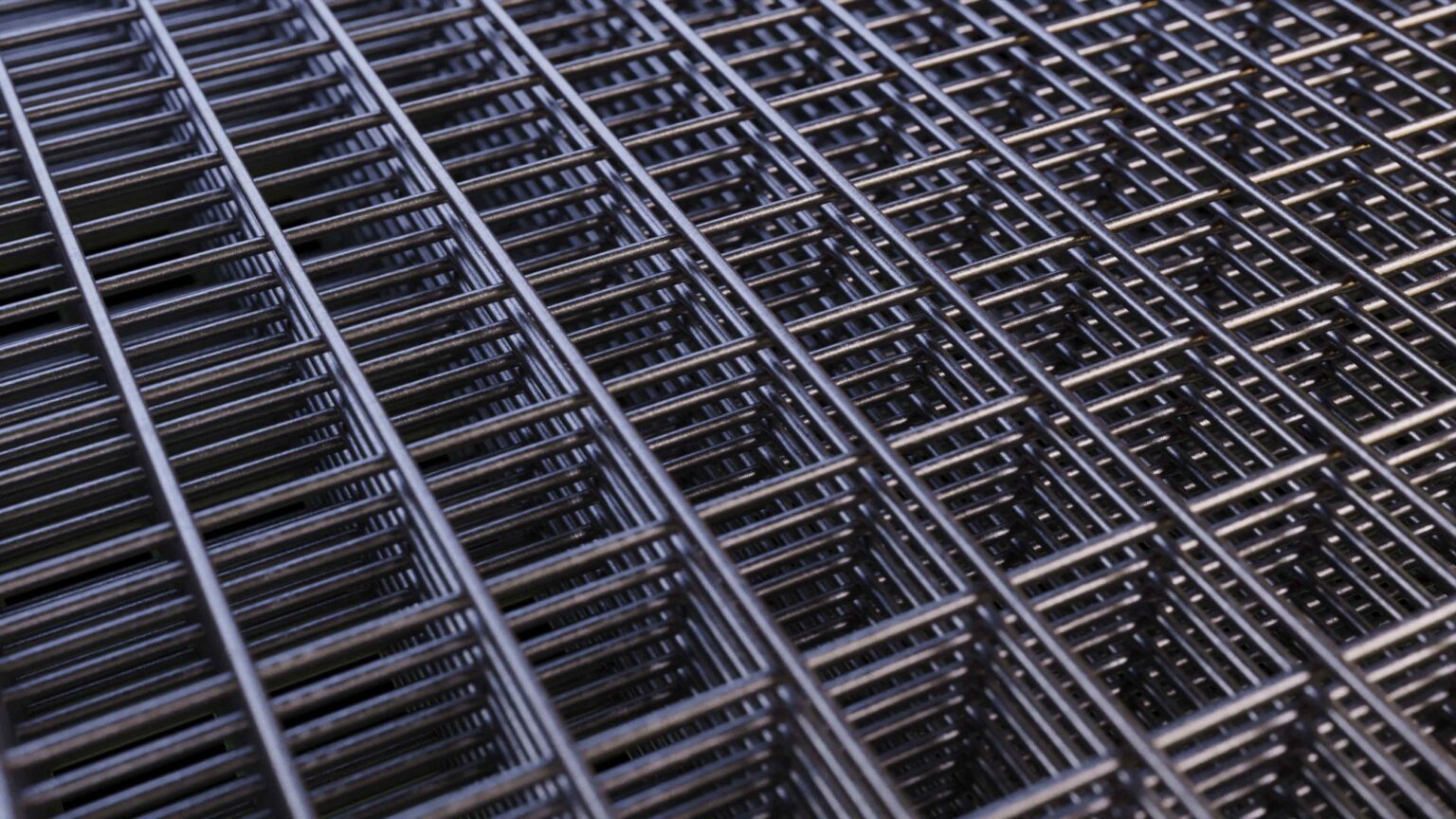

Welded Mesh
| Specification | Description |
|---|---|
| Material | Stainless steel, galvanized steel, mild steel, etc. |
| Wire Diameter | Typically ranges from 1mm to 6mm or more |
| Mesh Size | Can vary from 15mm to 6 inches |
| Width | Typically ranges from 1 meter to 2 meters |
| Length | Can be customized according to customer requirements |
| Tensile Strength | Depends on the material and wire diameter used |
| Corrosion Resistance | High for stainless steel and galvanized steel options |
| Applications | Reinforcing concrete, fencing, guards, enclosures, etc. |
Welded wire mesh is a versatile and high-strength material essential for modern construction, industrial, and agricultural applications. Engineered by welding longitudinal and transverse wires at every intersection, this mesh provides superior dimensional stability and uniform grid spacing. Whether you are reinforcing concrete slabs, fabricating secure industrial partitions, or designing heavy-duty fencing, welded mesh offers the structural integrity required to withstand significant stress. Available in various finishes—including galvanized, stainless steel, and PVC-coated—it ensures long-term resistance against corrosion and environmental wear, making it a cost-effective choice for both indoor and outdoor projects.
Beyond its structural capabilities, welded mesh is favored for its ease of installation and adaptability. Its rigid structure allows for precise cutting and shaping without the risk of unraveling, which is a common issue with woven alternatives. In the agricultural sector, it serves as reliable animal fencing and crop protection, while in urban infrastructure, it is the go-to solution for safety barriers, gabions, and decorative architectural facades. By choosing high-quality welded wire fabric, you benefit from a low-maintenance product that enhances safety, improves load distribution, and provides a sleek, professional finish to any engineering or DIY project.
| S.No | Pitch | Opening | Wire Dia | Width (mm) | Width (ft) | Weight per sqm | Weight for 50ft roll | No. of Warp Line Wires |
|---|---|---|---|---|---|---|---|---|
| 1 | 27.5 | 25.5 | 2.0 | 915 | 3 | 1.85 | 26.0 | 35 |
| 2 | 27.5 | 25.5 | 2.0 | 1220 | 4 | 1.85 | 34.5 | 46 |
| 3 | 27.5 | 25.5 | 2.0 | 1524 | 5 | 1.85 | 43.0 | 57 |
| 4 | 27.5 | 25.1 | 2.4 | 915 | 3 | 2.66 | 37.0 | 35 |
| 5 | 27.5 | 25.1 | 2.4 | 1220 | 4 | 2.66 | 49.5 | 46 |
| 6 | 27.5 | 25.1 | 2.4 | 1524 | 5 | 2.66 | 62.0 | 57 |
| 7 | 27.5 | 24.6 | 2.9 | 915 | 3 | 3.88 | 54.0 | 35 |
| 8 | 27.5 | 24.6 | 2.9 | 1220 | 4 | 3.88 | 72.0 | 46 |
| 9 | 27.5 | 24.6 | 2.9 | 1524 | 5 | 3.88 | 90.0 | 57 |
| 10 | 35.0 | 32.5 | 2.5 | 915 | 3 | 2.27 | 31.5 | 28 |
| 11 | 35.0 | 32.5 | 2.5 | 1220 | 4 | 2.27 | 42.0 | 36 |
| 12 | 35.0 | 32.5 | 2.5 | 1524 | 5 | 2.27 | 52.5 | 45 |
| 14 | 35.0 | 32.5 | 2.5 | 1830 | 6 | 2.27 | 63.0 | 54 |
| 15 | 35.0 | 32.1 | 2.9 | 915 | 3 | 3.05 | 42.5 | 28 |
| 16 | 35.0 | 32.1 | 2.9 | 1220 | 4 | 3.05 | 56.5 | 36 |
| 17 | 35.0 | 32.1 | 2.9 | 1524 | 5 | 3.05 | 71.0 | 45 |
| 18 | 35.0 | 32.1 | 2.9 | 1830 | 6 | 3.05 | 85.0 | 54 |
| 19 | 35.0 | 31.5 | 3.5 | 915 | 3 | 4.45 | 62.0 | 28 |
| 20 | 35.0 | 31.5 | 3.5 | 1220 | 4 | 4.45 | 82.5 | 36 |
| 21 | 35.0 | 31.5 | 3.5 | 1524 | 5 | 4.45 | 103.0 | 45 |
| 22 | 35.0 | 31.5 | 3.5 | 1830 | 6 | 4.45 | 124.0 | 54 |
| 23 | 40.0 | 36.0 | 4.0 | 915 | 3 | 5.08 | 71.0 | 24 |
| 24 | 40.0 | 36.0 | 4.0 | 1220 | 4 | 5.08 | 94.5 | 32 |
| 25 | 40.0 | 37.1 | 2.9 | 915 | 3 | 2.67 | 37.0 | 24 |
| 26 | 40.0 | 37.1 | 2.9 | 1220 | 4 | 2.67 | 49.5 | 32 |
| 27 | 40.0 | 37.1 | 2.9 | 1524 | 5 | 2.67 | 62.0 | 40 |
| 28 | 50.0 | 47.6 | 2.4 | 915 | 3 | 1.46 | 20.5 | 20 |
| 29 | 50.0 | 47.6 | 2.4 | 1220 | 4 | 1.46 | 27.0 | 26 |
| 30 | 50.0 | 47.6 | 2.4 | 1524 | 5 | 1.46 | 34.0 | 32 |
