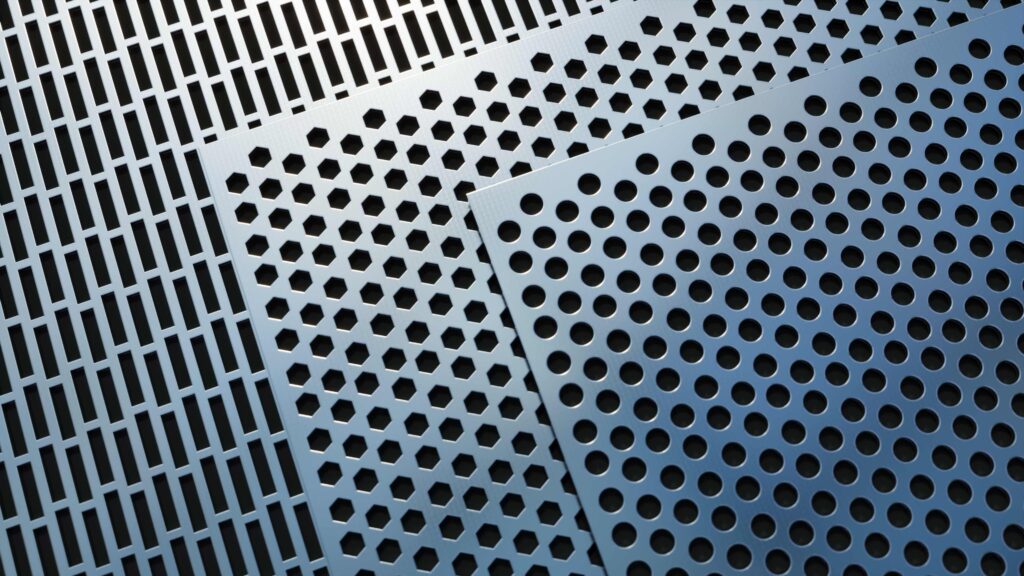

Perforated Sheet
Perforated sheets with round holes are one of the most versatile types of sheet metal due to their range of hole types, sizes, and material qualities. They offer a wide range of applications in almost any branch of industry, including filtration, ventilation, decoration, noise reduction, and heat dissipation.
Applications:-
- Fabrication
- Engineering
- Automobiles
- Food
- Agriculture
- Decorative
- Sound Absorption
Material Options:-
- Mild Steel: HR (Hot Rolled) and CR (Cold Rolled)
- Stainless Steel: SS 304, SS 316, and SS 430
- Galvanized Iron (GI)
- Aluminium
- Brass
Specifications:-
- Standard Sizes: 1 x 2 Meter, 1.25 x 2.5 Meter, 1.5 x 3 Meter (Custom Sizes on Request)
- Thickness: 0.35 MM to 12 MM
- Hole Shapes: Round, Square, Slot, Hex
- Hole Diameters: 0.5 MM to 100 MM
Our high-quality perforated sheets are designed to meet the highest standards of durability and performance, allowing for customization to suit specific industry requirements.
Readily Stocked Items:-

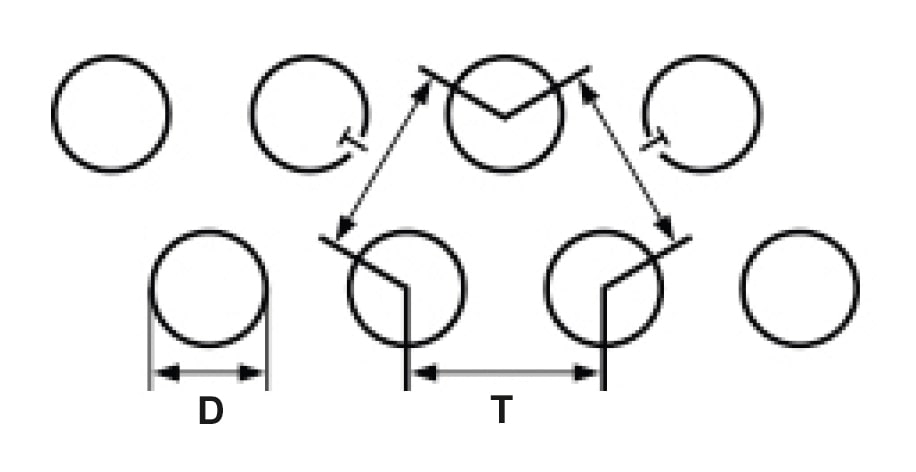

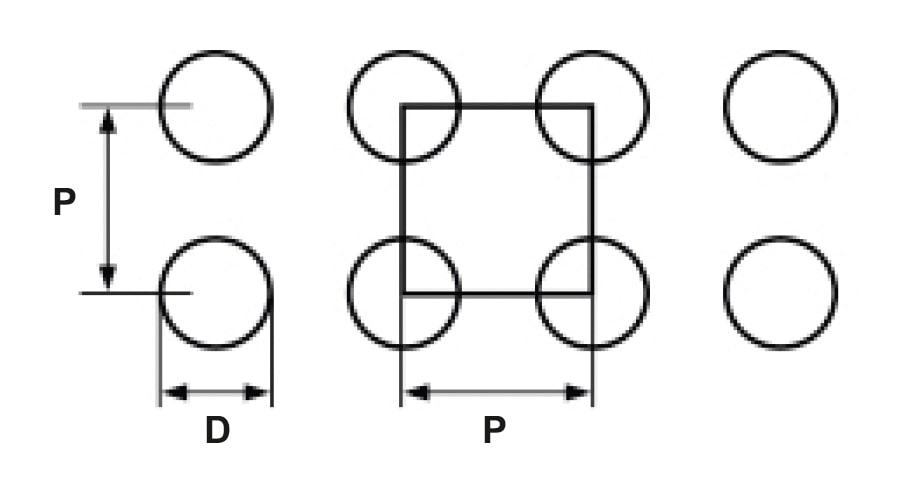

| Hole (D) | Pitch (P) | Open Area % |
|---|---|---|
| 0.5 | 1.1 | 18.74 |
| 0.8 | 1.4 | 29.61 |
| 0.9 | 1.4 | 37.48 |
| 1.0 | 1.7 | 31.38 |
| 1.2 | 2.0 | 32.65 |
| 1.5 | 2.5 | 32.65 |
| 1.8 | 3.5 | 23.99 |
| 2.0 | 4.0 | 22.67 |
| 2.2 | 4.0 | 27.43 |
| 2.5 | 4.5 | 27.99 |
| 3.0 | 5.0 | 32.65 |
| 3.2 | 6.5 | 21.98 |
| 4.0 | 6.5 | 34.34 |
| 4.5 | 6.5 | 43.47 |
| 5.0 | 8.0 | 35.43 |
| 6.0 | 9.0 | 40.31 |
| 7.0 | 13.0 | 26.29 |
| 8.0 | 11.5 | 43.89 |
| 10.0 | 12.0 | 62.98 |
| 10.0 | 15.0 | 40.31 |
| 10.0 | 20.0 | 22.67 |
| 12.0 | 18.0 | 40.31 |
| 15.0 | 25.0 | 32.65 |
| 16.0 | 25.0 | 37.15 |
| 18.0 | 25.0 | 47.01 |
| 20.0 | 30.0 | 40.31 |
| 25.0 | 35.0 | 46.27 |
| 28.0 | 39.0 | 46.75 |
| 30.0 | 50.0 | 32.65 |
| 50.0 | 65.0 | 53.66 |
| 65.0 | 80.0 | 59.87 |
| 80.0 | 100.0 | 58.04 |
